To insert images in your generated files, all you need to do is add a File upload question to your Google form and select the Insert as image option from the Template and markers Form Publisher menu. Form respondents can upload only one file per File upload question.

In this example, we show how to create a profile document, including an ID photo.

Add questions to your Google form

You can make a copy of our Google form template.

Procedure

1. Open a Google form.
2. Add questions to your Google form.
3. To configure a question to accept uploaded images, click the three-dot button and select File upload.

   A Let respondents upload files to Drive message appears.
4. Click Continue.

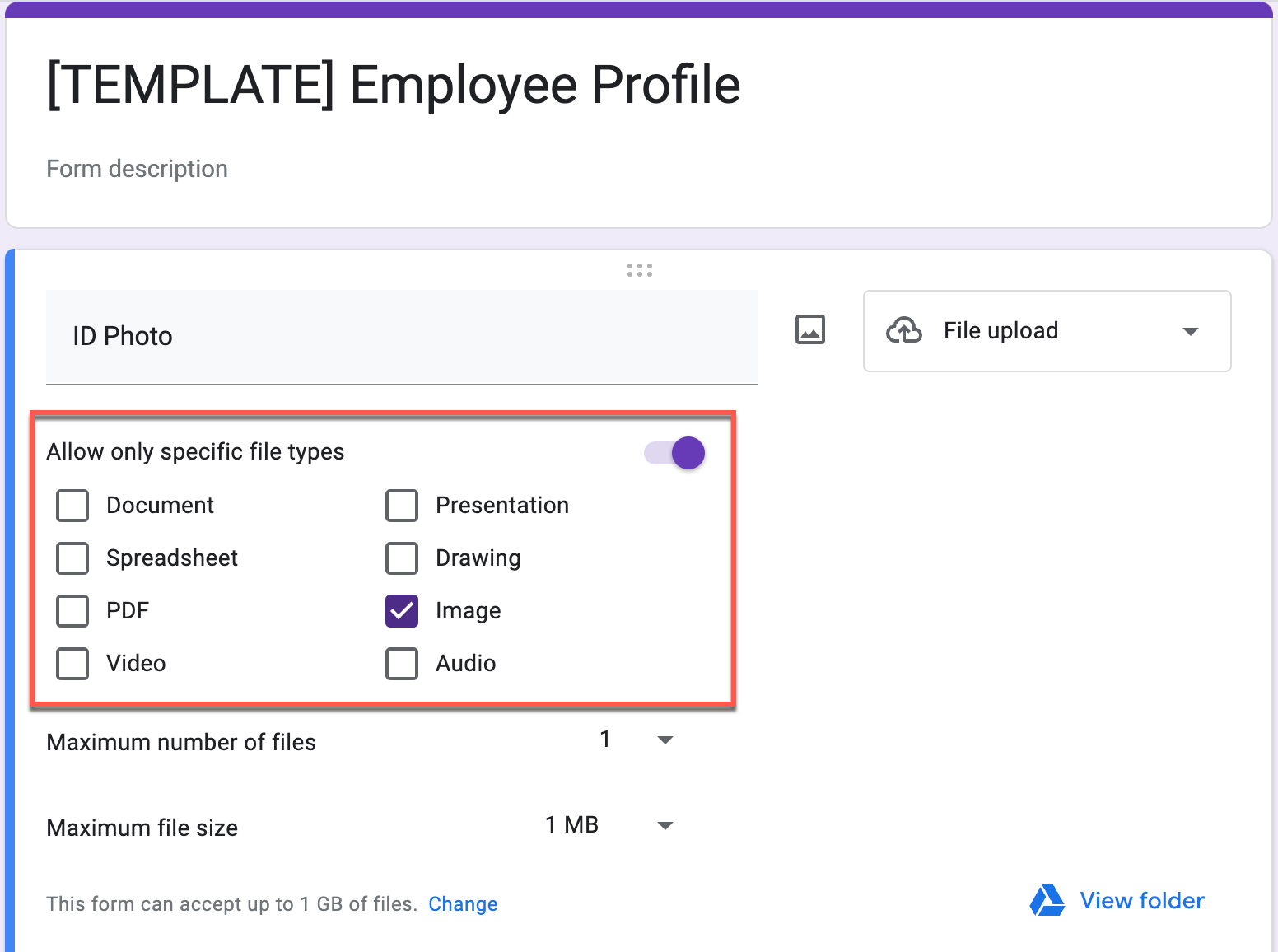

5. Select the Image checkbox.



   warning
   To prevent image display issues with Form Publisher, we recommend to:

   • Set the Maximum file size to 1MB

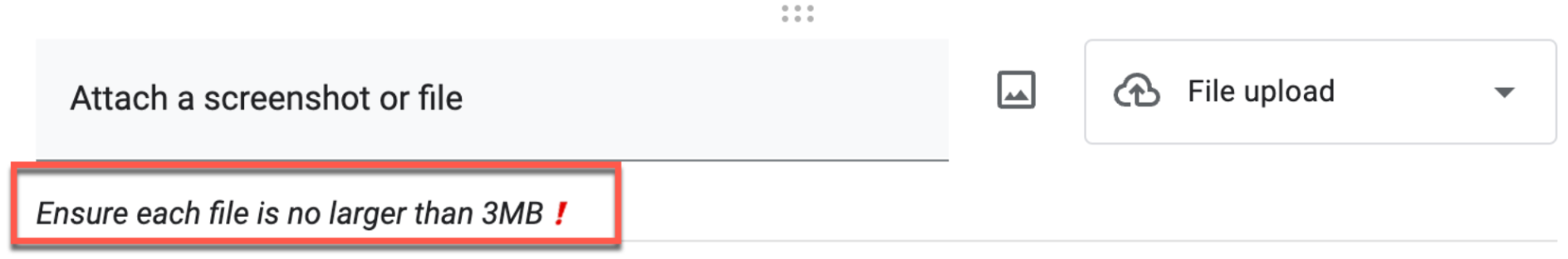

   • Or include a description under each File upload question, informing respondents that each uploaded file should not exceed 3MB




Result

Your Google form is now configured so that respondents can upload photos when they submit their response.

What’s next?

You can now create the document template which Form Publisher will use to generate documents from each submitted response.

Create your Google Docs template

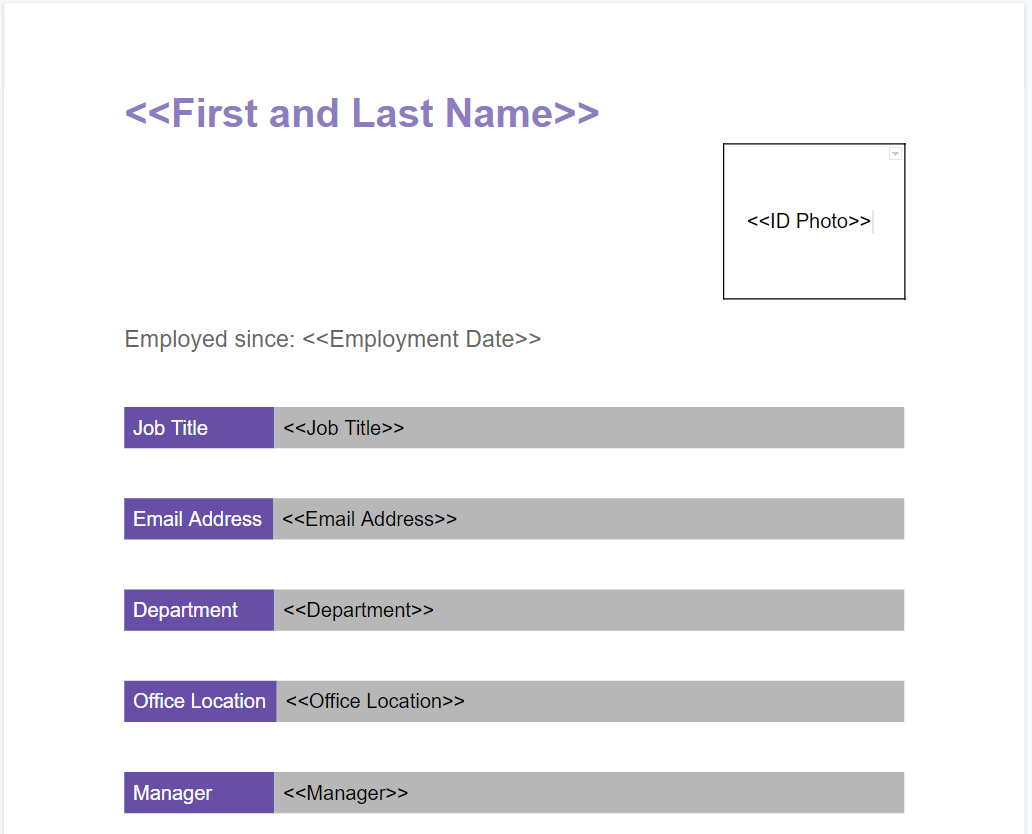

We show an example of a Google Docs template which can act as an employee profile containing the form respondent ID photo.

Procedure

1. Open a new Google Docs template.
2. Add the markers corresponding to the questions of your Google form. For example:

• <<First and Last Name>>
• <<Employment Date>>
• <<Job Title>>
• <<Email address>>
• <<Department>>
• <<Office Location>>
• <<Manager>>
• <<ID Photo>>


Result

The Google Docs template is ready.

What’s next?

You can now configure Form Publisher to use the employee profile template.

Configure and submit Form Publisher with the Google Docs template

With the employee profile template ready, you can now configure Form Publisher to use it for the generation of the documents on each response.

Prerequisites

Before you start the procedure, you must open Form Publisher and click Get Started.

Procedure

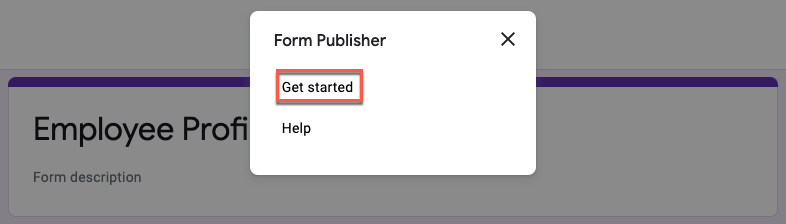

1. In the pop-up menu, click Get started.

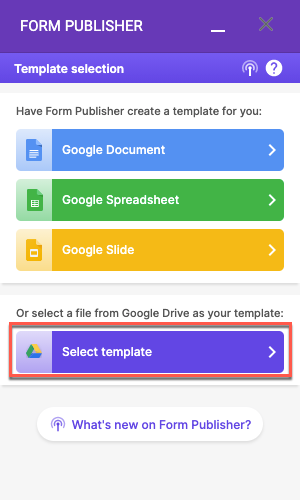

2. Click Select template to select the Google Docs file from Google Drive as a template.

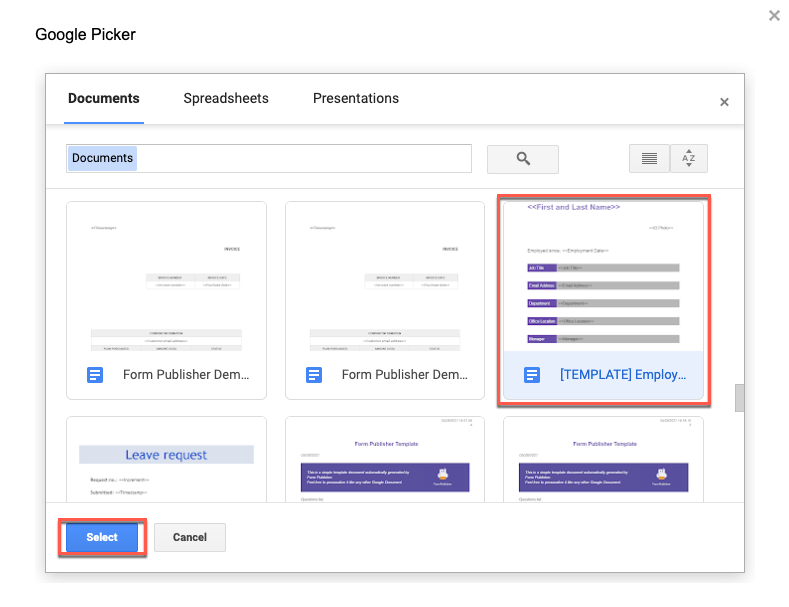

3. In the Google Picker, navigate to the file in Google Drive and click Select.

   The summary of the Form Publisher configuration appears.

4. Click Change settings.

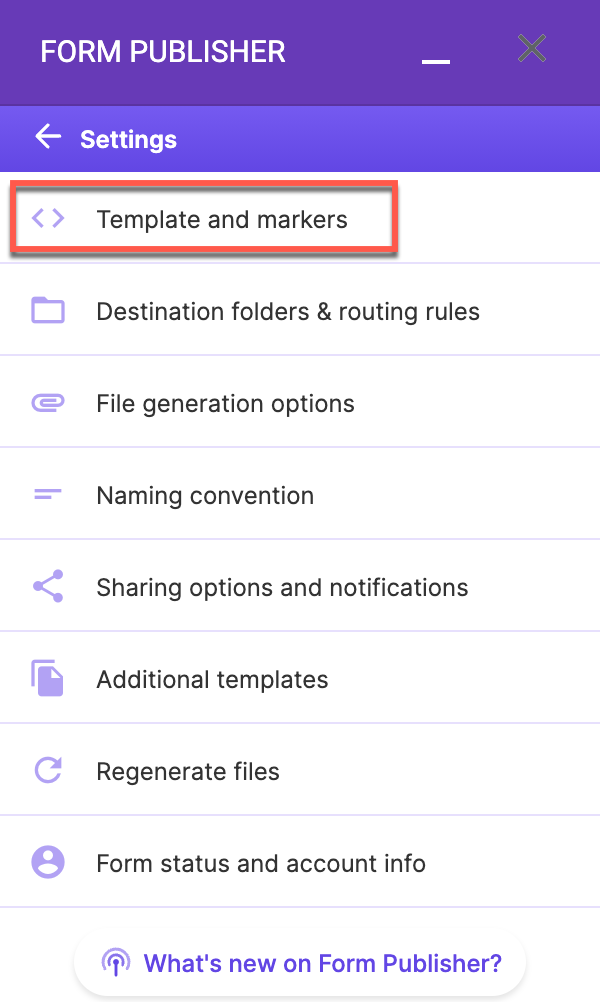

5. Select the Template and markers screen.

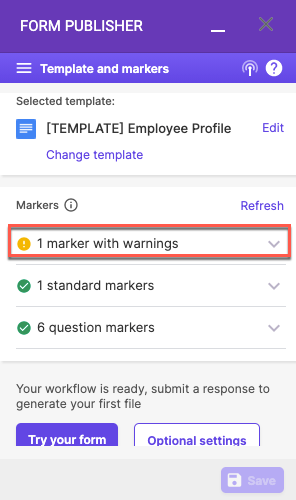

6. Click marker with warnings.

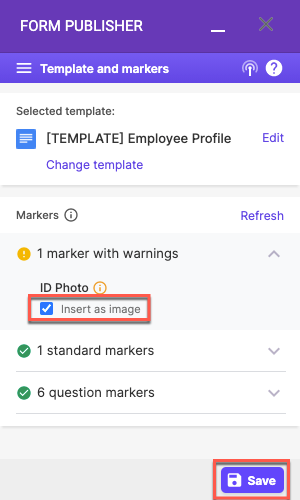

7. Select Insert as image under ID Photo and click Save.


   Form Publisher is now configured with a template that can accept images uploaded during the submission of the form response.


8. Submit the form.

Result

The Google Docs is generated with the uploaded image.
